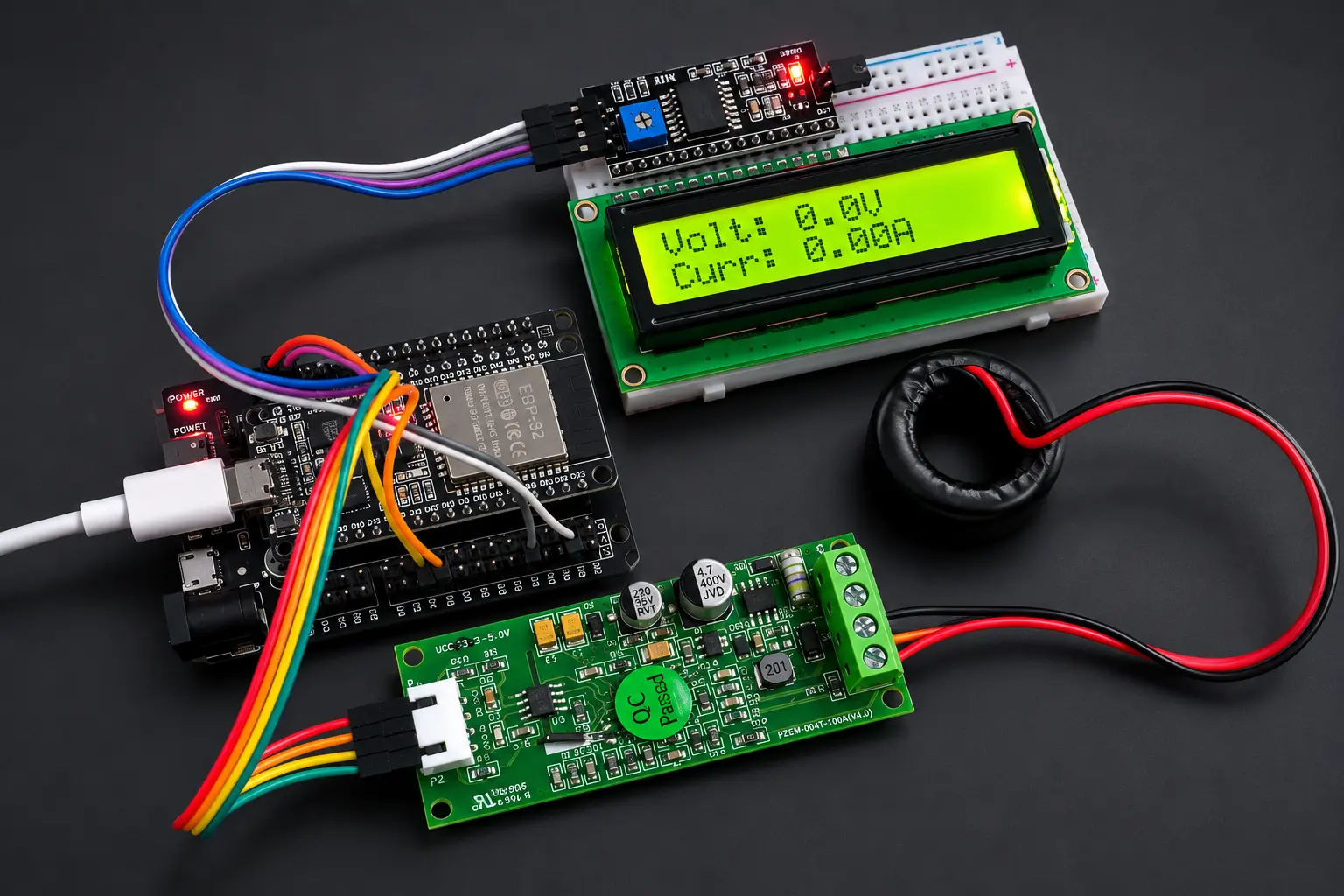

Readymade IoT Smart Energy Meter Using ESP32, PZEM-004T

Description

The IoT Smart Energy Meter System is a complete ready-to-use electrical monitoring project designed using an ESP32 microcontroller, PZEM-004T energy meter module, current transformer, I2C LCD display, and Blynk IoT platform.

It allows real-time measurement and monitoring of important AC electrical parameters such as voltage, current, active power, energy consumption, frequency, power factor, and estimated electricity cost (₹).

The system provides both a local hardware display through the 16×2 I2C LCD and remote monitoring through the Blynk mobile application, making it suitable for educational projects, demonstrations, appliance testing, and basic home energy monitoring.

⚙️ Key Features

📊 Real-time measurement of:

• AC Voltage (V)
• Load Current (A)
• Active Power (W)
• Energy Consumption (kWh)
• Frequency (Hz)
• Power Factor
• Estimated Electricity Cost (₹)
• Connected Load Status

📱 WiFi-based remote monitoring through Blynk 2.0

📟 Real-time on-device monitoring using a 16×2 I2C LCD

⚡ PZEM-004T-based electrical parameter measurement

⭕ External current transformer for non-invasive current sensing

🔄 Continuous live data updates on both LCD and Blynk

📈 Improved measurement stability compared with basic ACS712 and ZMPT101B systems

🌐 Monitor electrical parameters remotely through a smartphone

🔌 Supports single-phase household AC load monitoring

🧠 ESP32-based programmable and expandable system

🛠️ Suitable for modification, automation, alerts, and future upgrades

📱 Blynk IoT Monitoring

The Blynk mobile dashboard can display:

• ⚡ Voltage
• ⚡ Current
• ⚡ Active Power
• ⚡ Energy Consumption
• ⚡ Frequency
• ⚡ Power Factor
• ⚡ Electricity Cost

The ESP32 connects to a 2.4GHz WiFi network and sends the measured electrical data to the Blynk Cloud for real-time remote monitoring. A stable WiFi connection is required for uninterrupted Blynk data updates.

🎯 Improved Measurement Performance

The PZEM-004T directly measures multiple AC electrical parameters and communicates digitally with the ESP32.

Compared with energy meter projects using separate ACS712 current sensors and ZMPT101B voltage sensors, the PZEM-004T generally provides:

• ✅ More stable electrical readings
• ✅ Direct voltage and current measurement
• ✅ Built-in active power calculation
• ✅ Built-in energy accumulation
• ✅ Frequency measurement
• ✅ Power-factor measurement
• ✅ Reduced analog calibration requirements
• ✅ Better resistance to ESP32 ADC noise

⚠️ Low-Power Measurement Accuracy

🔻 Limited Accuracy at Very Low Power Levels

Although the PZEM-004T generally provides better low-load performance than basic analog sensor systems, very small loads may still produce delayed, fluctuating, or zero readings.

📉 Why This Happens

• The module has a minimum detectable current threshold
• Very small loads generate a weak current signal
• Power-factor variations affect low-power measurements
• Some phone chargers and LED drivers consume non-linear current
• Electrical noise may affect readings near the lower measurement limit
• Measurement performance depends on the supplied PZEM-004T variant

⚡ Practical Impact

• Very small standby loads may not be detected accurately
• Low-wattage LED bulbs may show slight fluctuations
• Phone chargers without a connected phone may display little or no power
• Small routers and adapters may not match professional laboratory instruments exactly
• Best results are generally obtained with moderate and higher-power AC loads

🎯 Recommended Loads

• Incandescent bulbs
• Fans
• Soldering irons
• Electric irons
• Heaters
• Kettles
• Desktop computers
• Televisions
• Other medium-to-high-power single-phase appliances

📦 Package Includes

• ESP32 Development Board
• PZEM-004T Energy Meter Module
• External Current Transformer
• 16×2 I2C LCD Display
• I2C LCD Interface Module
• Project Mounting Board
• Jumper Wires
• AC Input Wiring
• AC Load Connection Wiring
• AC Plug
• AC Socket for Load Connection
• Required Connectors
• Pre-uploaded ESP32 Program
• Blynk Integration Support

The exact enclosure, PCB, breadboard, connectors, wire colours, and component appearance may vary depending on component availability and selected product configuration.

📐 Measurement Range and Specifications

AC Voltage

Typical Measurement Range: Approximately 80V–260V AC

Recommended Application: Single-phase household AC supply

Load Current

The current measurement range depends on the supplied PZEM-004T version and current transformer.

Possible module variants may include:

• 10A version
• 100A external CT version

The supplied product configuration should be confirmed before purchase.

Electrical Parameters

• Voltage Measurement: V
• Current Measurement: A
• Active Power Measurement: W
• Energy Measurement: kWh
• Frequency Measurement: Hz
• Power Factor Measurement: 0.00–1.00
• Cost Calculation: Based on the configured electricity unit rate
• Energy Tracking: Continuous accumulated energy monitoring
• Display: 16×2 I2C LCD
• Controller: ESP32
• Connectivity: 2.4GHz WiFi
• IoT Platform: Blynk 2.0
• Supply Type: Single-phase AC
• Remote Monitoring: Blynk mobile application

Actual accuracy and measurement limits depend on the PZEM module version, current transformer, wiring quality, connected load, electrical noise, calibration, and supply conditions.

🎯 Suitable For

• 🎓 Engineering and Diploma Students
• 🧪 Electronics and IoT Hobbyists
• 🏫 School and College Science Exhibitions
• 🔬 Educational Demonstrations
• 🧑‍💻 ESP32 and Blynk Learning Projects
• 🏠 Basic Home Energy Monitoring
• 🔌 Appliance Power Consumption Testing
• 📊 Electricity Usage Demonstrations
• ⚡ Single-Phase AC Load Monitoring
• 🛠️ Final-Year Academic Projects
• 📱 IoT Dashboard Demonstrations
• 🏢 Small Laboratory and Training Applications

⚠️ Limitations

• ❌ Not certified for legal, commercial, or utility billing purposes
• ❌ Not a replacement for an electricity-board-approved energy meter
• ❌ Measurement accuracy may vary at very low power levels
• ❌ Small standby loads may not be detected correctly
• ❌ Designed only for compatible single-phase AC systems
• ❌ Not suitable for three-phase industrial systems
• ❌ Requires stable 2.4GHz WiFi for Blynk monitoring
• ❌ Blynk monitoring depends on internet and cloud availability
• ❌ Actual readings may differ slightly from professional calibrated instruments
• ❌ No built-in overload, surge, short-circuit, or earth-leakage protection unless separately specified
• ❌ Energy data may reset if the module is replaced, reset, or reprogrammed
• ❌ The LCD may be difficult to view under extreme angles or strong direct light
• ❌ The ESP32 and low-voltage sections must be protected from exposed mains wiring
• ❌ PCB, breadboard, connectors, and wiring require careful handling
• ❌ Continuous commercial or industrial operation is not recommended without a certified enclosure and professional electrical installation

🔐 High-Voltage Safety Warning

This project works with potentially lethal 230V AC mains electricity.

Incorrect wiring, exposed conductors, loose connections, damaged insulation, or improper handling may cause:

• Severe electric shock
• Fire
• Short circuit
• Component damage
• Serious injury
• Death

Always disconnect the AC power supply before touching, moving, modifying, or reconnecting the system.

The product should be installed and operated only by someone with adequate electrical knowledge or under the supervision of a qualified electrician.

Use proper:

• Electrical insulation
• Fuse protection
• MCB protection
• Enclosure
• Strain relief
• Earthing
• Terminal covers
• Fire-resistant wiring
• Correctly rated plugs and sockets

Never touch the PZEM-004T high-voltage terminals or AC wiring while the system is powered.

🚀 Why Buyers Love This IoT Smart Energy Meter

📊 Complete Multi-Parameter Monitoring

Measure voltage, current, power, energy, frequency, power factor, and estimated electricity cost using one compact system.

📱 Monitor Electricity Usage Remotely

View real-time electrical parameters through the Blynk mobile application from anywhere with an internet connection.

📟 LCD and Mobile Monitoring

Check readings directly on the LCD or remotely through your smartphone.

⚡ PZEM-004T-Based Measurement

The PZEM-004T provides direct digital electrical measurements and avoids many problems associated with separate analog current and voltage sensors.

💰 Track Units and Estimated Cost

Monitor accumulated energy consumption in kWh and calculate an estimated electricity cost based on the configured unit rate.

🧠 Practical IoT Learning System

Learn how ESP32, UART communication, electrical measurement, LCD displays, WiFi, cloud dashboards, and Blynk IoT work together.

🔌 Minimal Setup Required

The project is assembled, programmed, and tested before dispatch according to the selected product configuration.

🎓 Ideal Academic Project

Suitable for college demonstrations, final-year projects, exhibitions, IoT laboratories, and electronics training.

⚙️ Customizable and Expandable

The system can be expanded with:

• Relay control
• Overload alerts
• Voltage alerts
• Current alerts
• Telegram notifications
• Automatic appliance control
• Data logging
• Daily energy reports
• Monthly billing calculations
• Web dashboard monitoring

Additional functions or customization may involve additional charges.

Important Purchase & Setup Instructions

• Account Creation: Before purchasing this product, make sure to create an account on this website.
• Payment Process: After completing your purchase, do not press the back button. The payment system will automatically redirect you to the order page. If you face any payment-related issues, inform us at [email protected].
• Next Steps: After purchasing, our team will contact you soon regarding the shipment procedure.
• System Setup: Customers will need to provide their Blynk account ID and other required configuration details to our team at the time of setup.

Shipping Information

• Delivery Area: This product is exclusively available for delivery Pan India.
• International Shipping: Not deliverable outside of India.
• Shipping Time: Customers need to give atleast 2 days for preparing the shipment after purchase.

Terms & Conditions (Please Read Carefully)

• Cancellations: After the item has been shipped, no modifications or cancellations are possible.
• Returns: Once the product is delivered, no returns are accepted.
• Warranty Policy: This product carries no standard warranty.
• Support: Virtual support is only available for 1 month from the date of delivery.
• 7-Day Replacement Policy: If the system is not working upon arrival, you must inform us within 7 days of delivery by emailing [email protected]. Make sure to record a full unboxing video without no edit and no cut. If any editing found, immediately replace procedure will terminate. We will replace the faulty components only after a thorough technical checkup confirms the defect.
• Post-7 Days: After the initial 7-day period, no complaints, replacements, or service requests will be entertained.

The Smart Energy Meter System is a complete ready-to-use IoT-based electrical monitoring project designed using an ESP32 microcontroller. It allows real-time measurement and monitoring of electrical parameters such as voltage, current, power, energy consumption, and cost (₹).

This system integrates both hardware display (I2C LCD) and remote monitoring via Blynk app, making it ideal for learning, demonstration, and small-scale practical applications.
