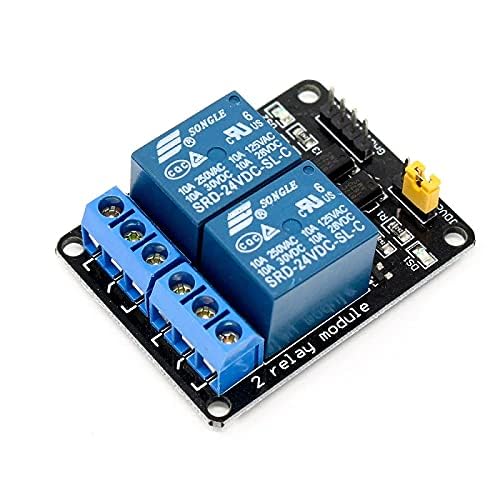

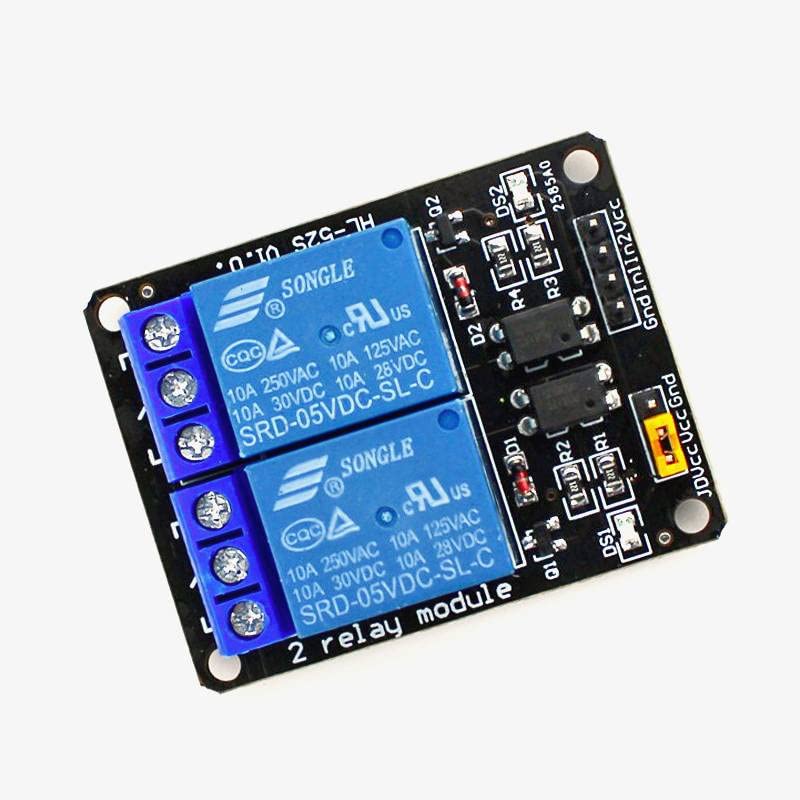

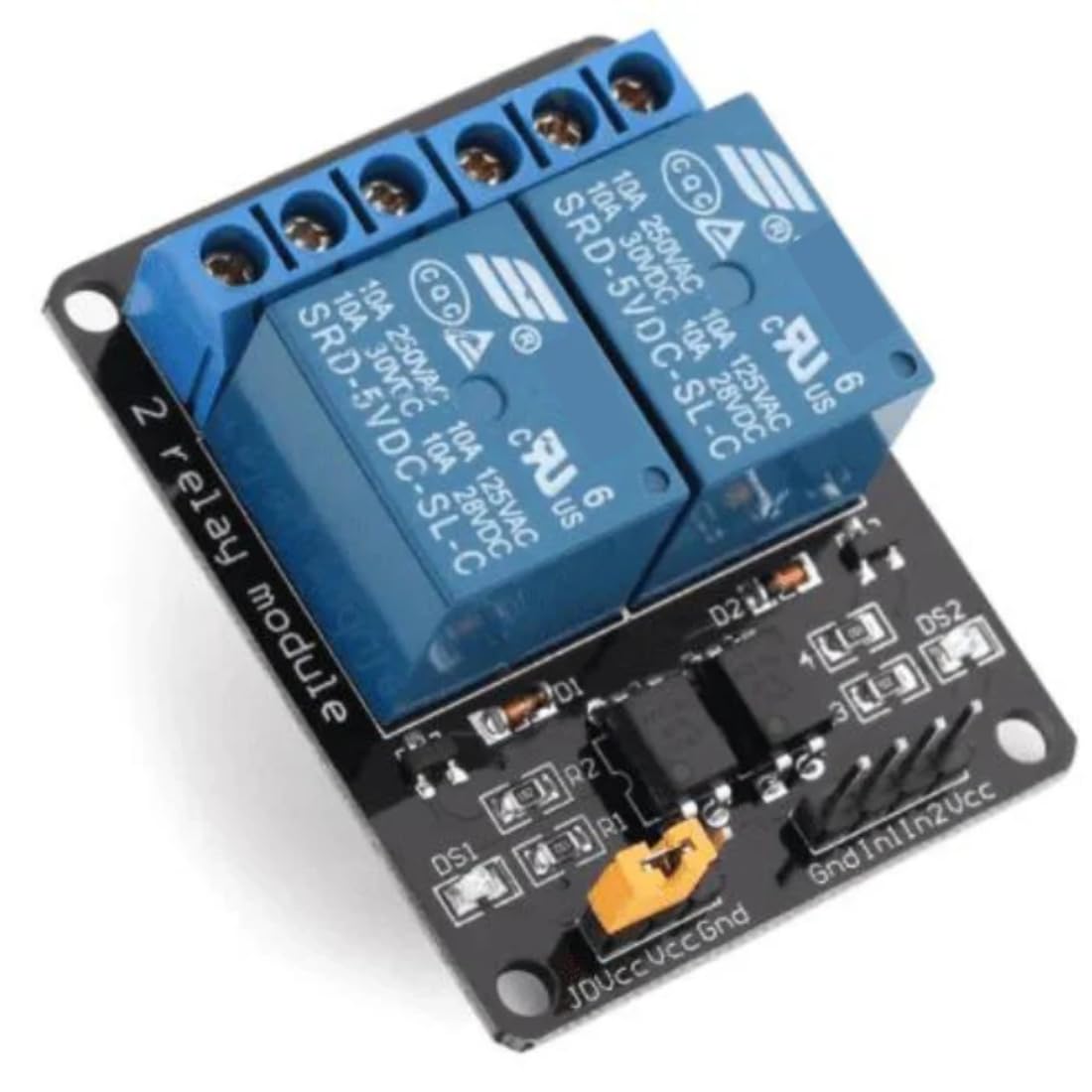

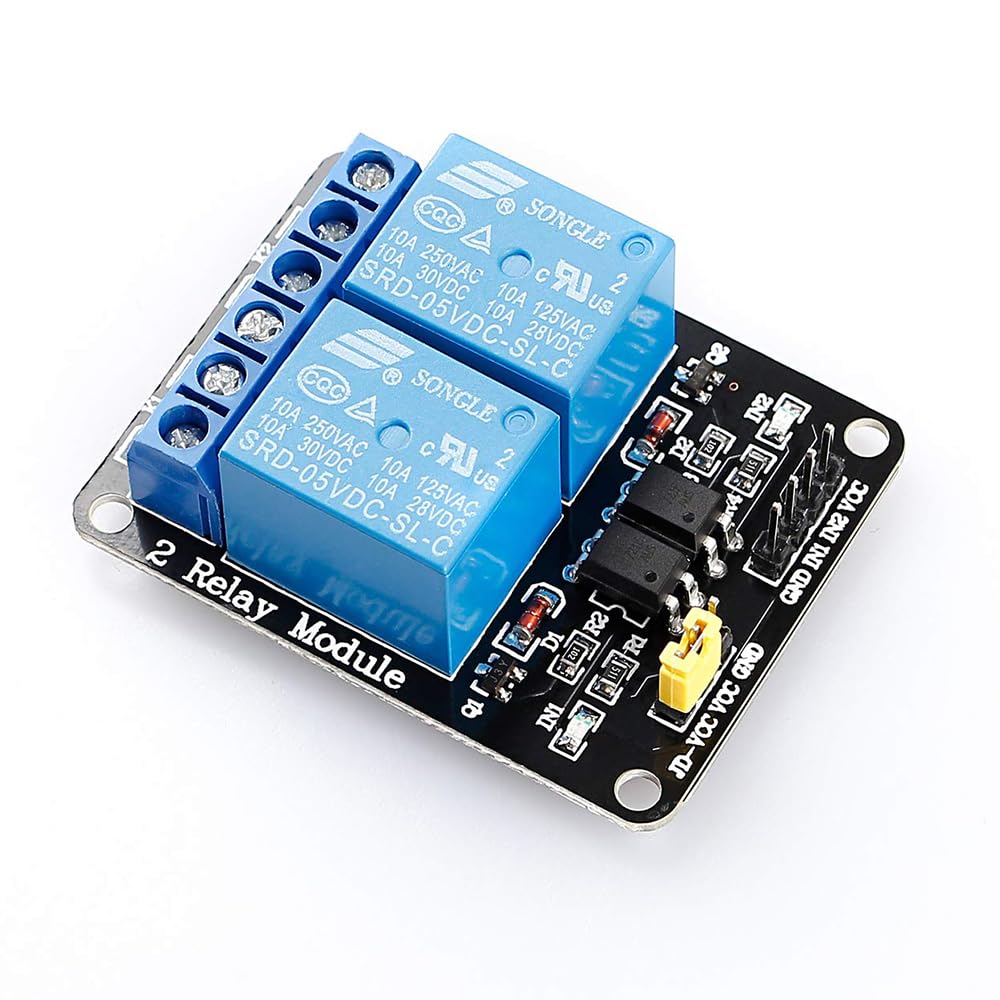

2 Channel 5V/10A Relay Module With Optocoupler Protection

Description

Take secure and reliable control of high-power devices with the 2 Channel 5V Relay Module. Designed for seamless integration with microcontrollers like Arduino, ESP32, and Raspberry Pi, this board allows you to safely switch heavy AC or DC loads using low-voltage digital signals.

Featuring built-in optocoupler isolation, it provides an essential layer of safety by physically separating your sensitive logic circuits from high-voltage electrical spikes. This guarantees stable performance and protects your expensive development boards even in demanding electrical environments.

⚙️ Key Features

• Optocoupler Isolation: Built-in photo-isolation protects your microcontroller from high-voltage transient spikes and electrical noise.
• Dual Channel Control: Independently control two separate appliances or circuits from a single microcontroller board.
• High Load Capacity: Equipped with premium mechanical relays capable of switching up to 10A at 250V AC or 30V DC per channel.
• Selectable Trigger Levels: Onboard jumpers allow you to configure each relay for either High-level or Low-level triggering, adapting to any logic requirement.
• Visual Status Indicators: Features integrated LEDs for power status and individual relay activation, making troubleshooting and monitoring effortless.

🎯 Suitable For / Applications

• Home Automation Systems: Controlling room lighting, ceiling fans, or smart plugs from an IoT dashboard.
• Industrial Control: Managing heavy-duty contactors, solenoids, or small motors in automated workflows.
• Gardening & Agriculture: Automating water pumps and timed irrigation valves.
• Student & Maker Projects: Prototyping smart relays, timed power switches, and complex microcontroller learning modules.

📐 Technical Specifications

📦 Package Includes

• 1x 2 Channel 5V Relay Module With Optocoupler Protection
